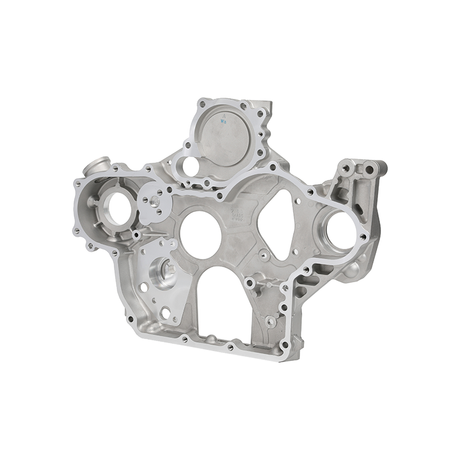

High upfront tooling costs demand intense precision right from the start. Industry data reveals 80% of part defects lock into place during the initial engineering phase. This reality makes mold design the absolute most critical variable for project ROI. Modern production moves far beyond basic shape creation. We must focus deeply on the precise physics governing molten metal flow and complex thermal management. Liquid metal inherently behaves chaotically when injected under extreme pressure. A highly optimized Die Casting mold design dictates cycle times, prevents critical structural failures, and ensures tight dimensional repeatability. You will learn exactly how specific engineering choices directly impact final part quality. We will explore actionable frameworks to evaluate a manufacturing partner's tooling expertise before they cut any steel. Understanding these mechanical dynamics empowers you to eliminate production bottlenecks early.
Defect Prevention: Optimal gating, cooling, and venting systems are non-negotiable for eliminating porosity, cold shuts, and shrinkage.
DFM is Mandatory: Adhering to strict Design for Manufacturability (DFM) guidelines—like uniform wall thickness and precise draft angles—extends mold life and guarantees part consistency.
Partner Evaluation: A reliable Die Casting Service proves its expertise through predictive mold flow simulations before a single piece of steel is cut.
Total Cost of Ownership: Investing in high-grade mold materials and advanced design upfront exponentially reduces per-part costs and post-machining rework.
Manufacturing high-quality metal components requires mastering chaotic environments. Molten aluminum or zinc enters the tool cavity at velocities exceeding 30 meters per second under pressures reaching 10,000 PSI. Liquid metal behaves unpredictably at these extremes. Poor tooling layouts exacerbate this inherent chaos. When engineers fail to account for fluid dynamics, the resulting turbulence directly translates into structural and cosmetic flaws.
Trapped air and uneven cooling cycles create the most severe structural issues: gas and shrinkage porosity. Gas porosity occurs when turbulent metal folds over itself, trapping atmospheric air inside the cavity. Shrinkage porosity happens when thick sections of the part cool slower than thin sections. The material contracts as it solidifies, pulling away from the molten center and leaving internal voids. Both forms of porosity severely compromise structural integrity, rendering parts unfit for high-stress applications.
Improper temperature control within the tool generates severe dimensional inaccuracy. Metal expands when heated and shrinks upon cooling. If the tool lacks uniform thermal management, residual thermal stress builds up across the component. Once the ejector pins push the part out of the cavity, these unequal stresses release, causing the part to warp immediately. Warped components inevitably fail downstream assembly processes.
Surface blemishes often stem from premature solidification. When runners lack proper sizing, the metal loses heat too quickly before filling the entire cavity. Two semi-solid metal fronts eventually meet but fail to fuse completely. This phenomenon creates visible seam lines known as cold shuts. Cold shuts degrade aesthetics and act as weak points where fractures commonly initiate under physical load. Superior tooling engineering proactively neutralizes these rejection triggers.
A production tool is not a static block of steel. It functions as an active machine consisting of interconnected sub-systems. Each sub-system governs a specific physical process during the injection cycle. Flawless execution across these three primary networks ensures consistent part quality.
The runner system acts as the highway for molten metal, channeling it from the machine nozzle into the actual part cavity. The gate represents the final entry point. Together, they control the velocity, direction, and turbulence of the liquid metal. Proper sizing ensures the material maintains sufficient heat to fill the deepest features without freezing prematurely. Conversely, an oversized gate might induce excessive turbulence, whipping air into the metal stream. Expert engineers meticulously calculate cross-sectional areas to achieve a laminar flow, keeping the metal front smooth and unified.
Rapid and uniform solidification requires aggressive thermal management. Cooling channels snake through the tool block, pumping water or specialized thermal fluids to extract heat. Strategically placed cooling lines prevent localized hot spots near thick part geometries. If a tool runs too hot, metal solders to the cavity walls. If it runs too cold, the material freezes before filling the mold. Advanced conformal cooling techniques place channels equidistant from complex part contours. This uniformity reduces shrinkage defects and optimizes cycle times for high-volume scalability.
Every cavity starts full of air. Incoming metal must displace this air instantly. Venting networks provide engineered escape routes for these trapped gases. Without adequate vents, compressed air burns the metal or forms internal bubbles. Overflows act as external reservoirs attached to the main cavity. They catch the very first wave of injected metal. This initial metal often cools too rapidly and picks up impurities or lubricants from the tool walls. Pushing this compromised metal into the overflows ensures only premium, high-temperature material forms the actual component.
Mold Sub-System | Primary Engineering Function | Quality Defects Prevented |
|---|---|---|
Gating & Runners | Controls fluid velocity and minimizes turbulent metal flow. | Cold shuts, surface blisters, incomplete cavity fills. |
Cooling Channels | Regulates thermal gradients for uniform part solidification. | Warping, localized shrinkage porosity, soldering. |
Vents & Overflows | Evacuates displaced atmospheric air and catches initial cold metal. | Gas porosity, burn marks, structural weak points. |
A flawless tool cannot fix a fundamentally flawed part geometry. Design for Manufacturability (DFM) rules bridge the gap between theoretical CAD models and physical manufacturing realities. Verifiable engineering parameters separate amateur concepts from production-ready blueprints. Ignoring these parameters forces the tool to work against the laws of physics.
Enforce Uniform Wall Thickness: Sudden transitions between thick and thin walls cause catastrophic cooling failures. Thin sections freeze instantly, while thick sections remain molten. The shrinking thick section pulls material away from the already-frozen thin section, creating internal voids. Maintaining uniform thickness ensures predictable, even solidification across the entire component.
Implement Generous Draft Angles: Metal shrinks around internal tool features as it cools. Without proper draft (a slight taper applied to vertical walls), the part essentially locks itself onto the tool block. Inadequate draft causes galling, where the part drags against the steel during ejection. This friction leaves deep scratches on the part and causes premature wear on the mold cavity. Most engineers mandate a minimum draft of 1 to 2 degrees for clean ejection.
Utilize Fillets and Radii: Sharp internal corners create severe stress concentrations. From a fluid dynamics perspective, sharp 90-degree angles disrupt the molten metal flow, causing it to separate and trap air. From a tooling perspective, sharp corners experience intense thermal fatigue and crack rapidly under pressure. Applying proper radii to all internal and external corners improves structural strength and drastically extends tool longevity.
Eliminate Isolated Heavy Masses: Large solid volumes trap heat. They require excessive cooling times, which slows down the entire production cycle. Furthermore, they are prime locations for severe shrinkage porosity. Engineers core out these heavy masses, replacing solid blocks with ribbed structures that maintain strength while reducing material volume.
Adhering strictly to these DFM parameters ensures the part aligns perfectly with the capabilities of modern Die Casting technology.
A perfect digital schematic holds zero value if executed using subpar physical materials. The tooling environment is ruthlessly destructive. High-pressure liquid metal acts as an erosive abrasive, while alternating heating and cooling cycles introduce severe mechanical fatigue. Protecting your engineering investment requires selecting the correct metallurgical properties.
Tool steel selection determines the ultimate lifespan of the cavity. Industry standards heavily favor premium-grade H13 tool steel or advanced variations like DIEVAR. Material purity matters immensely. Impurities in low-grade steel act as microscopic fracture points. Over thousands of cycles, thermal shock causes these points to propagate into visible cracks—a phenomenon known as heat checking. These cracks transfer directly onto the final part as raised veins, destroying cosmetic finishes and requiring early tool replacement.
Surface treatments provide a vital defensive barrier. Engineers frequently apply specialized heat treatments to harden the steel core. Beyond basic hardening, localized surface treatments like nitriding or Physical Vapor Deposition (PVD) coatings create an ultra-hard exterior layer. These coatings protect the cavity from the highly erosive nature of liquid aluminum, preventing the molten metal from chemically bonding (soldering) to the tool surface.
Maintenance considerations must heavily influence the initial architectural layout. A robust design embraces modularity. High-wear components—specifically core pins and gate inserts—degrade faster than the main cavity block. Engineers design these specific elements as removable inserts. When a pin inevitably bends or erodes, technicians can swap the singular piece rapidly without dismantling or replacing the entire main tool block.
Selecting a manufacturing partner requires looking past basic facility lists. You must audit their specific engineering protocols. The quality of your final components depends entirely on the rigor a partner applies during the pre-production phases. Use this logical framework to evaluate potential partners.
Demand comprehensive mold flow simulation data. Trustworthy partners never rely on trial and error. They utilize advanced computational fluid dynamics software, such as MAGMASOFT or Flow-3D. These programs simulate the exact thermal behavior and metal flow velocities before anyone cuts a single piece of steel. A competent partner will show you thermal heat maps and air entrapment predictions, proving mathematically that the runner and venting systems function correctly.
Assess their DFM transparency and willingness to collaborate. A credible Die Casting Service will actively push back on your initial CAD files. They should provide a detailed DFM report highlighting problematic wall transitions, insufficient draft angles, and un-manufacturable features. If a partner accepts a complex CAD file without suggesting optimization improvements, they likely lack deep engineering expertise.
Ask explicit questions about quality validation during the tool trial phase. Once the physical tool exists, the validation protocol dictates success. Look for clear, documented procedures for First Article Inspection (FAI). They should utilize Coordinate Measuring Machines (CMM) to provide full dimensional reports verifying the tool matches the print. Furthermore, demand non-destructive testing capabilities. X-ray inspections remain the only reliable method to prove the internal structure is free from porosity.
Die casting mold design stands as a highly complex engineering discipline. It directly governs every mechanical, structural, and aesthetic property of your final product. The chaotic physics of molten metal demand perfect fluid and thermal management to achieve repeatable success.
Cutting corners during the tooling design phase inevitably invites disaster. Poor runner layouts, inadequate cooling, and ignored DFM rules guarantee high scrap rates, inconsistent production batches, and compromised end-use performance. You cannot out-manufacture a bad mold design through machine adjustments alone.
Protect your production timeline by prioritizing engineering rigor from day one. Submit your CAD files for a comprehensive DFM review. Demand rigorous mold flow analysis to validate fluid dynamics. Ensure your project is optimized for high-yield, defect-free manufacturing by partnering with engineers who respect the physics of metal injection.
A: Typical timelines range from 4 to 8 weeks. This schedule depends heavily on part complexity, the number of required DFM iterations, and the integration of moving slides or complex cores. High-precision simulation and heat treatment phases also require dedicated time to ensure maximum tool longevity.
A: No. While operators can tweak process parameters like injection pressure and plunger speed, these adjustments cannot overcome fundamental design flaws. Machine settings will never fix isolated thick sections, lack of draft, or inadequate venting networks built into the physical steel.
A: Uneven walls cool at drastically different rates. As the material cools, it contracts. If thin sections freeze first, they pull molten metal away from the slower-cooling thick sections. This internal pulling causes severe shrinkage porosity. Uniform thickness guarantees consistent, predictable solidification.
A: Reputable engineers use sophisticated computational simulation software like MAGMASOFT, Flow-3D, or AnyCasting. These programs accurately predict high-speed metal flow, identify air entrapment zones, and map out thermal gradients before the manufacturing facility cuts any physical tool steel.
