When engineering high-performance electric motor systems, the selection of protective and structural components is just as critical as the electromagnetic design of the core itself. Among the most vital components in this architecture is the aluminum motor housing, which serves a multifaceted role in ensuring operational stability, thermal management, and environmental protection. The modern industrial landscape demands electric motors that can operate continuously under strenuous conditions without succumbing to thermal degradation or mechanical failure. Consequently, engineers and system designers must carefully evaluate the materials and manufacturing processes used to create these enclosures. An optimized aluminum motor housing not only protects the delicate internal windings and rotor assemblies from external contaminants but also acts as a primary conduit for dissipating the immense heat generated during electromagnetic induction and mechanical rotation. As industries ranging from automotive manufacturing to textile production continue to push the boundaries of motor efficiency and power density, the reliance on advanced die-casting technologies and superior aluminum alloys has become increasingly pronounced. This comprehensive exploration delves into the engineering principles, material sciences, and manufacturing methodologies that define top-tier motor enclosures, providing project managers and mechanical engineers with the insights necessary to make informed component selections for their specific application requirements.
The fundamental purpose of any motor enclosure extends far beyond simple physical containment. In high-stakes industrial environments, the housing is an active participant in the motor's overall performance and longevity. The structural integrity of the enclosure must withstand significant torsional forces, vibrational stress, and potential impact without deforming, as any alteration in the internal geometry could lead to catastrophic rotor stator collisions. Furthermore, the housing must maintain strict dimensional tolerances across a wide range of operating temperatures. This is where the inherent properties of aluminum, particularly when processed through advanced high-pressure die casting, become indispensable. Unlike heavier cast iron alternatives, aluminum offers an exceptional strength-to-weight ratio, which is crucial for applications where overall system weight must be minimized, such as in automotive vehicle motors or portable industrial machinery. Additionally, aluminum's natural resistance to corrosion provides a baseline level of environmental protection, which can be further enhanced through specialized surface treatments. By leveraging a high-quality aluminum alloy motor housing, engineers can achieve a delicate balance between robust mechanical protection and lightweight efficiency, ultimately contributing to the overall energy conservation and performance optimization of the entire electromechanical system.
Heat is the primary enemy of electric motor efficiency and lifespan. As electrical current passes through the stator windings, inherent resistance generates substantial thermal energy. If this heat is not rapidly and effectively removed from the motor core, the insulation surrounding the copper windings will degrade, leading to short circuits and complete motor failure. Furthermore, excessive heat increases the electrical resistance of the windings, creating a vicious cycle of thermal runaway that drastically reduces operational efficiency. The thermal conductivity of the housing material is therefore a paramount consideration. Aluminum excels in this regard, offering significantly higher thermal transfer rates compared to steel or cast iron. In advanced designs, such as the Altop Durable Aluminum Alloy Motor Housing Pressure Die Casting, the thermal management system is engineered directly into the housing geometry. This specific product features an integrated heat dissipation rib design alongside built-in air guide channels. These architectural elements are meticulously calculated to optimize air convection across the surface area of the housing. By maximizing the surface area exposed to ambient or forced air cooling, the integrated ribs facilitate rapid thermal exchange. The built-in air guide channels further enhance this process by directing airflow efficiently over the hottest sections of the enclosure, ensuring uniform cooling and preventing localized hot spots that could compromise internal components.
The material specifications of the Altop housing further underscore its thermal capabilities. Utilizing A383 aluminium alloy, the housing achieves a remarkable thermal conductivity rating of 150W/(m·K). This high rate of thermal transfer ensures that heat generated at the core is swiftly conducted to the exterior surface. Under continuous operation, this advanced thermal architecture maintains a housing surface temperature of ≤ 65 °C, provided the ambient conditions and motor load remain within designed parameters. The ability to sustain such controlled surface temperatures is critical for compliance with safety standards and for protecting adjacent components in tightly packed mechanical assemblies. Furthermore, the housing is engineered to endure a continuous operating temperature range from -20°C to 180°C. This broad thermal tolerance ensures that the motor can function reliably in diverse environmental conditions, from freezing industrial storage facilities to the intensely hot compartments of automotive engine bays or heavy-duty manufacturing plants. By effectively managing the thermal load, the housing directly contributes to the preservation of the motor's internal insulation system, thereby extending the operational lifespan and reducing the frequency of costly maintenance interventions.
The selection of the specific aluminum alloy is a critical decision in the manufacturing of motor housings. Not all aluminum blends are created equal; each alloy presents a unique matrix of tensile strength, ductility, thermal conductivity, and castability. For high-performance applications, A383 aluminium alloy is frequently chosen due to its superior performance in high-pressure die casting environments. A383 is characterized by its excellent fluidity when molten, allowing it to fill intricate mold cavities with high precision. This characteristic is essential for forming the complex internal geometries, precise mounting points, and delicate heat dissipation ribs required in modern motor enclosures. Furthermore, A383 offers enhanced resistance to hot cracking during the cooling phase, ensuring the structural integrity of the final cast component. The Altop Durable Aluminum Alloy Motor Housing Pressure Die Casting leverages the specific metallurgical advantages of A383 to deliver a product of exceptional durability and reliability. The inherent properties of this alloy contribute significantly to the overall mechanical robustness of the housing, making it an ideal choice for demanding industrial and commercial applications.
When evaluating the mechanical specifications of the Altop housing, the benefits of the A383 alloy become quantifiably apparent. The material provides a robust tensile strength of ≥ 310 MPa, ensuring that the enclosure can withstand significant mechanical stress and internal pressures without fracturing or deforming. This high tensile strength is particularly important in applications where the motor is subjected to sudden load changes or continuous vibrational forces. Additionally, the housing is engineered to maintain a continuous pressure resistance of 30MPa. This exceptional pressure tolerance is a direct result of the high-pressure casting process combined with the structural density of the A383 alloy. Such resilience is crucial for maintaining the precise internal dimensions required for optimal motor function. For instance, the rotor assembly fit precision is maintained at a stringent ±0.08 mm. This microscopic level of precision ensures that the rotor remains perfectly aligned within the stator, minimizing electromagnetic imbalances, reducing operational noise, and preventing mechanical wear between moving parts. The stability provided by the A383 alloy ensures that these critical tolerances are preserved throughout the entire operational lifespan of the motor, regardless of the thermal or mechanical stresses encountered in the field.

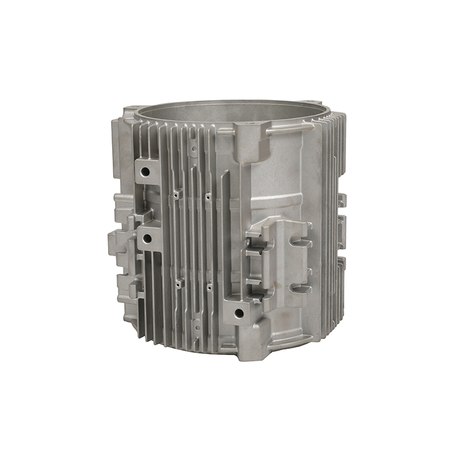

The methodology used to form the motor housing is just as important as the material itself. High-pressure die casting is the premier manufacturing process for producing high-volume, high-precision aluminum components. In this process, molten A383 aluminum alloy is injected into a precisely machined steel mold, or die, under immense pressure. This high pressure forces the molten metal into every microscopic crevice of the mold, ensuring that complex features such as the integrated heat dissipation ribs and built-in air guide channels are perfectly replicated in every single unit. The rapid cooling of the metal under pressure also results in a fine-grained metallurgical structure, which significantly enhances the mechanical properties of the final component compared to traditional gravity casting methods. The Altop Durable Aluminum Alloy Motor Housing Pressure Die Casting is constructed using this advanced high-pressure casting process, guaranteeing exceptional dimensional consistency and structural density across all production batches. This level of manufacturing precision is essential for components that must integrate seamlessly into complex electromechanical assemblies, where even the slightest deviation in mounting hole placement or internal diameter could render the part unusable.
For projects requiring specialized fluid handling or hydraulic systems, the precision of the die casting process is paramount. Components used in these systems must maintain absolute dimensional stability to prevent leaks and ensure efficient fluid transfer. Engineers sourcing pump motor die casting parts demand the highest levels of quality control and material integrity. The high-pressure die casting process utilized for the Altop housing ensures that the internal surfaces are exceptionally smooth and free from porosity, which is critical for maintaining the integrity of seals and bearings. Furthermore, the rapid cycle times associated with high-pressure die casting make it an economically viable solution for large-scale manufacturing operations, allowing for the mass production of highly complex components without sacrificing quality or precision. The ability to consistently reproduce intricate geometries with tight tolerances is what sets high-pressure die casting apart as the industry standard for premium motor enclosure manufacturing.

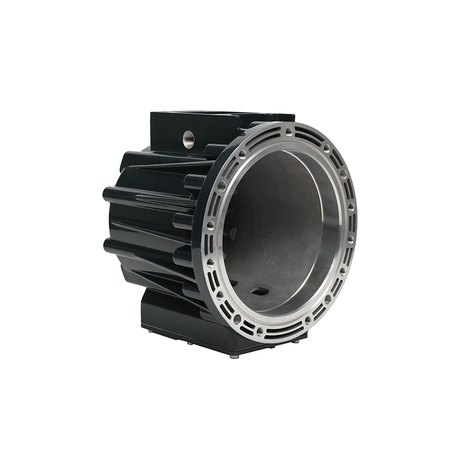

While aluminum naturally forms a protective oxide layer that resists basic corrosion, the harsh environments typical of industrial motor applications require significantly more robust surface protection. Exposure to chemical solvents, high humidity, abrasive dust, and continuous mechanical friction can rapidly degrade an untreated aluminum surface, leading to structural weakening and premature failure. To combat these environmental hazards, advanced surface treatments are applied to the motor housing. The Altop Durable Aluminum Alloy Motor Housing Pressure Die Casting includes a hard anodised surface specifically engineered for superior wear resistance. Hard anodizing is an electrochemical process that thickens and toughens the naturally occurring oxide layer on the aluminum surface, transforming it into an incredibly hard, ceramic-like coating. This treatment dramatically increases the surface hardness of the housing, achieving a verified wear resistance rating of HV420. This exceptionally hard exterior protects the housing from physical abrasions, scratches, and the erosive effects of airborne particulate matter, ensuring that the structural integrity and aesthetic appearance of the component are maintained over years of rigorous use.
Beyond physical wear resistance, the surface treatment must also provide comprehensive protection against chemical corrosion. The Altop housing has been rigorously tested to ensure its environmental durability, having successfully passed the stringent 96-hour neutral salt spray test. This standardized testing protocol subjects the component to a highly corrosive saline mist, simulating years of exposure to harsh, salt-laden environments such as coastal industrial facilities or automotive undercarriages. Passing this test verifies that the hard anodised surface provides an impenetrable barrier against oxidative degradation. In addition to the standard hard anodised finish, the manufacturing process supports extensive customization for shell surface treatments to meet specific project requirements. Clients can specify alternative finishes such as sandblasting for a matte, non-reflective appearance, specialized oxidation processes for unique environmental resistances, or custom spraying to match corporate color schemes or specific aesthetic requirements. This flexibility in surface finishing ensures that the motor housing can be perfectly tailored to the environmental demands and visual design language of the final product assembly.
In modern industrial manufacturing, quality assurance extends far beyond basic dimensional inspections. Complete traceability throughout the production lifecycle is essential for maintaining strict quality control, facilitating targeted recalls if necessary, and providing end-users with verifiable data regarding the manufacturing history of their components. Advanced manufacturing facilities implement comprehensive tracking systems that monitor every variable of the production process, from the specific batch of raw aluminum alloy to the exact parameters of the high-pressure injection and the final surface treatment application. To support this rigorous quality control framework, each Altop Durable Aluminum Alloy Motor Housing Pressure Die Casting is marked with a laser traceability code. This permanent, high-contrast marking allows engineers and quality control inspectors to instantly query production and inspection data for every individual unit. By scanning the laser traceability code, users can access a detailed historical record of the component, verifying material certifications, production dates, testing results, and compliance with specified tolerances. This level of transparency is invaluable for critical applications where component failure could result in significant financial loss or safety hazards.
The commitment to quality is further demonstrated through exhaustive mechanical testing protocols. Motor housings must endure continuous vibrational stress and fluctuating mechanical loads throughout their operational lifespan. To ensure long-term reliability under these conditions, the Altop housing has been subjected to rigorous fatigue testing. Specifically, the component has passed 200,000 fatigue tests in accordance with ISO 23771 standards. This internationally recognized testing protocol simulates the repetitive mechanical stresses that the housing will experience in the field, verifying that the A383 alloy and the high-pressure casting structure will not succumb to fatigue cracking or structural failure over time. The successful completion of these 200,000 fatigue cycles provides engineers with the empirical data necessary to confidently specify the housing for mission-critical applications. The combination of the laser traceability code and the verified adherence to ISO 23771 fatigue testing standards ensures that every housing delivered meets the highest benchmarks for industrial reliability and performance.
The versatility and robust engineering of the Altop Durable Aluminum Alloy Motor Housing Pressure Die Casting make it suitable for a vast array of industrial and commercial applications. The specific design features, such as the integrated heat dissipation ribs and the high thermal conductivity of the A383 alloy, are particularly beneficial in sectors where motors operate continuously under high loads. One of the primary application areas is within the textile and clothing manufacturing industry. The housing is specifically categorized for use as a Sewing Machine Motor enclosure. In this demanding environment, motors must operate at high speeds for extended shifts, generating significant heat that must be managed to prevent thread breakage and machine downtime. The Altop housing is extensively utilized in clothing manufacturing using high-speed lockstitch sewing machines, where its thermal management capabilities ensure consistent motor performance. Furthermore, it is deployed in automotive interiors and special materials manufacturing using heavy-duty sewing machines, which require exceptional torque and sustained power delivery. The housing is also ideal for home textiles production using multi-functional sewing machines, providing the necessary durability for varied operational profiles.
The precision engineering required for textile machinery is a testament to the quality of the casting process. Manufacturers seeking reliable sewing machine motor die casting solutions require components that offer exact dimensional tolerances to ensure the smooth operation of intricate mechanical linkages. Beyond the textile industry, the robust nature of the Altop housing facilitates its integration into numerous other demanding sectors. In the automotive industry, the housing is utilized for automotive vehicle motors, including critical systems such as power windows, windshield wipers, and cooling fans. These applications demand components that can withstand extreme temperature fluctuations, constant vibration, and exposure to road debris and moisture. The housing's continuous operating temperature range of -20°C to 180°C and its verified salt spray resistance make it exceptionally well-suited for these harsh automotive environments. Additionally, the housing is widely implemented in industrial machinery, serving as a protective enclosure for motors driving conveyor belts and fluid pumps. The continuous pressure resistance of 30MPa ensures reliable operation in these heavy-duty industrial settings. Finally, the component is also found in everyday household appliances, providing durable and efficient motor protection for washing machines, dryers, and vacuum cleaners, where long-term reliability and quiet operation are paramount consumer expectations.
A superior motor housing must not only possess excellent physical properties but also offer seamless compatibility with existing industry standards and equipment architectures. The Altop Durable Aluminum Alloy Motor Housing Pressure Die Casting is engineered with broad compatibility in mind, ensuring that it can be easily integrated into a wide variety of motor assemblies without requiring extensive redesigns of the internal components. Specifically within its primary category, the housing is fully compatible with industrial sewing equipment, including complex lockstitch, overlock, and interlock machines. This broad compatibility allows textile manufacturers to standardize their motor enclosures across different types of machinery, simplifying inventory management and maintenance procedures. Furthermore, the housing is designed to be compatible with major Japanese standard motor specifications, including those utilized by industry leaders such as JUKI and Brother, as well as domestic standard motor specifications. This adherence to established international and domestic standards ensures that the housing can serve as a direct replacement or an upgraded component in a vast global market of existing machinery.
While standard compatibility is crucial, the unique requirements of specialized engineering projects often demand bespoke solutions. Recognizing this need, the manufacturing process for the Altop housing supports extensive customization options to meet exact client specifications. Engineers requiring specialized custom motor housing die casting services can leverage these capabilities to optimize the enclosure for their specific application. The customization support extends beyond the previously mentioned shell surface treatments (sandblasting, oxidation, spraying) to include critical structural modifications. Clients can specify custom installation hole positions, ensuring that the housing mates perfectly with proprietary mounting brackets or unique machinery chassis designs. Additionally, the manufacturing process supports brand logo engraving directly into the die-cast surface, providing a permanent and professional branding solution that will not peel or fade over time. It is important for project planners to note the specific limitations and conditions associated with this highly customized manufacturing process; specifically, physical samples are not available prior to the finalization of customization parameters and the subsequent mould opening phase. This policy ensures that all engineering resources are dedicated to producing the final, approved custom geometry with absolute precision.
The Altop Durable Aluminum Alloy Motor Housing Pressure Die Casting represents a highly engineered solution for demanding electromechanical applications, combining the superior thermal conductivity (150W/(m·K)) and tensile strength (≥ 310 MPa) of A383 aluminium alloy with the precision of high-pressure casting to achieve a strict ±0.08 mm rotor assembly fit. Its integrated heat dissipation ribs, built-in air guide channels, and hard anodised surface (HV420 wear resistance) provide exceptional thermal management and environmental durability, verified by successful 96-hour salt spray and 200,000 ISO 23771 fatigue tests. With broad compatibility across industrial sewing equipment (JUKI, Brother, domestic standards) and diverse applications ranging from automotive vehicle motors to heavy-duty industrial machinery, alongside comprehensive customization options for surface treatments, hole positions, and branding, this housing delivers unparalleled reliability, traceability, and performance for professional engineers and manufacturers seeking optimized motor protection and efficiency.
